Replace motordriver axis 6



DANGER!

Danger resulting from incorrect commissioning

⇒ Commissioning must be performed only by persons with technical and electrotechnical training who were also authorized by fruitcore robotics!

Required tools:

  • 3 mm Allen key
  • 2,5 mm Allen key
  • Torx spanner 10

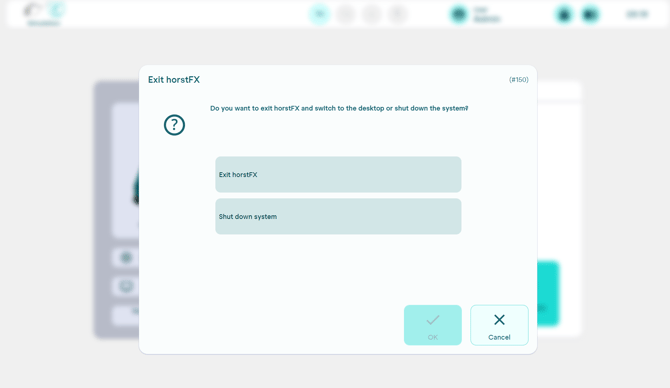

  1. Shut down the robot and disconnect it from the power grid.


  2. Loosen the screws marked in yellow.
  3. Carefully lift the cover and disconnect the plug connections underneath, as well as the fastening screws.
  4. Insert the new motor driver with the cooling pads and tighten the screws to a torque of 0.8 Nm. Then reconnect all plug connections.
  5. Fit the cover and tighten the screws to 2.5 Nm.
