      Checking the micro fuse

      This section describes how to check the micro fuse on the H600.

      DANGER!

      Danger resulting from incorrect commissioning

      ⇒ Commissioning must be performed only by persons with technical and electrotechnical training who were also authorized by fruitcore robotics!



      1. Switch off the robot and de-energize the system. Disconnect the Harting plug.
        close HorstFX

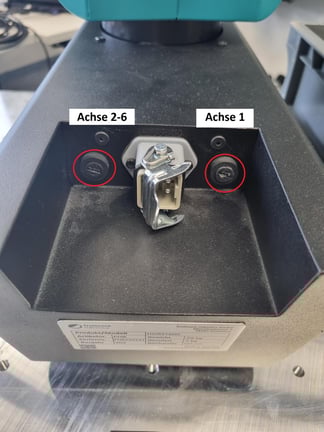

      2. Use a flat-blade screwdriver to unscrew the micro fuse to be tested.



      3. Check the micro fuse using a multimeter.
      4. Reinsert the microfuses after checking them. Incorrect insertion may result in error messages.
