HORST600 G2


Small size.
Serious power.

Free feasibility request

HORST600G2_header

7 kg

Maximum load capacity

610 mm
maximum reach

+/- 0.05
Repeat accuracy

IP54 / IP65
Protection class

| HORST600 G2

Performance in the smallest of spaces.

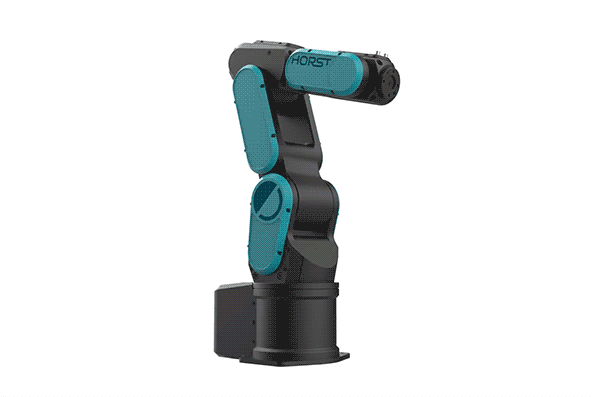

 HORST600 G2 is the most compact robot in the HORST family. With high axis speeds, strong acceleration and a payload of up to 7 kg, it delivers maximum performance with minimum space requirements. It can be flexibly mounted on the floor, wall, ceiling or incline, and its high precision makes it ideal for pick-and-place applications and parts handling of all kinds. The space-saving design and intuitive, AI-supported control system enable easy integration into robot cells - for maximum productivity with minimum effort.
//MADE IN GERMANY
//MODULAR ROBOT FAMILY
//PHYSICAL AI READY
//NO-CODE PROGRAMMING
//PLUG AND PRODUCE
//DATA SOUVEREIGNTY
| TOTAL PACKAGE

More than just a robot

With integrated control and the horstOS automation software, you can replace traditional PLC structures and external control technology. This allows you to implement complete automation - intuitively and graphically, without any expert knowledge and with a digital twin of your automation solution.
01
HORST600G2S_bom

HORST600 G2

Number of axles
6
Nominal load (VDI 2861-2)
5 kg
Repeat accuracy
+/- 0.05 mm
Protection class
IP54 / IP65
Clean room class (ISO 14644-1)
ISO 6
weight
38 kg
02
control_bom

Control unit

Dimensions
313 × 174 × 446 mm
weight
approx. 10 kg
Power supply
230 V AC, 50-60 Hz
Inputs and outputs
20 digital inputs,
18 digital outputs
Safety: 6 inputs,
8 outputs (PL d)
Communication
TCP/IP 100 Mbit/s, XML-RPC,
Modbus, Profinet, EtherCAT
03
panel_bom

Control unit

Dimensions
330 x 255 x 95 mm
Weight
approx. 1.9 kg
Display
13.3" touchscreen
(2560x1600 - 2.5 K)
Operation
Safety-relevant emergency stop
2x 3-point enabling switch
2x adjustable handles
Interfaces
2x USB 3.0 ports
04
horstOS_bom

Software horstOS

Software application
Automation software for
robots, processes & peripherals
Operation
Visual programming
without in-depth expert knowledge
Library
More than 200 preconfigured
components & projects
Integration
No external PLC required,
Parallel processes can be implemented
Support & assistance
Integrated AI co-pilot
incl. voice function
| PORTFOLIO

All products at a glance.
  • All products
  • Robots
  • Solutions
Machine Tending-2
KI PLATFORM

Our software

Learn more
Machine Tending II
NEW

HORST800 G2

Learn more
Pick & Place-2

HORST1000 G2

Learn more
Part Separation-1

HORST1500 G2

Learn more
Machine Tending-2
ROBOTIC SOLUTION

Machine Tending I

Learn more
Machine Tending II
ROBOTIC SOLUTION

Machine Tending II

Learn more
Pick & Place-2
ROBOTIC SOLUTION

Pick & Place

Learn more
Part Separation-1
ROBOTIC SOLUTION

Part separation

Learn more
Solutions_Overview
ROBOTIC SOLUTIONS

Our solutions

Learn more
Robots_Overview
INDUSTRIAL ROBOTS

Our robots

Learn more
horstOS_Overview
AI & SOFTWARE

Our AI platform

Learn more
Ecosystem_Overview
ECOSYSTEM

Our accessories

Learn more
Machine Tending-2
NEW

HORST600 G2

Learn more
Machine Tending II
NEW

HORST800 G2

Learn more
Pick & Place-2

HORST1000 G2

Learn more
Part Separation-1

HORST1500 G2

Learn more
HORST600G2S_Overview2-1
INDUSTRIAL ROBOT

HORST600 G2

Learn more
HORST800G2S_Overview2
INDUSTRIAL ROBOT

HORST800 G2

Learn more
HORST1000G2_Overview2
INDUSTRIAL ROBOT

HORST1000 G2

Learn more
HORST1500G2_Overview2
INDUSTRIAL ROBOT

HORST1500 G2

Learn more
| CONFIGURATOR

Configure your robot now.

Assemble your robot entirely according to your requirements. Select components, accessories, software packages and interfaces and immediately receive a transparent overview of your individual configuration.
Configure
| DOWNLOADS

All the details. Ready for download.
fruitcorerobotics_product_catalog_thumb-1
Product catalog
Discover our modular automation world - seamlessly integrated hardware, intelligent software and turnkey solutions.
Download
HORST600G2_techdata

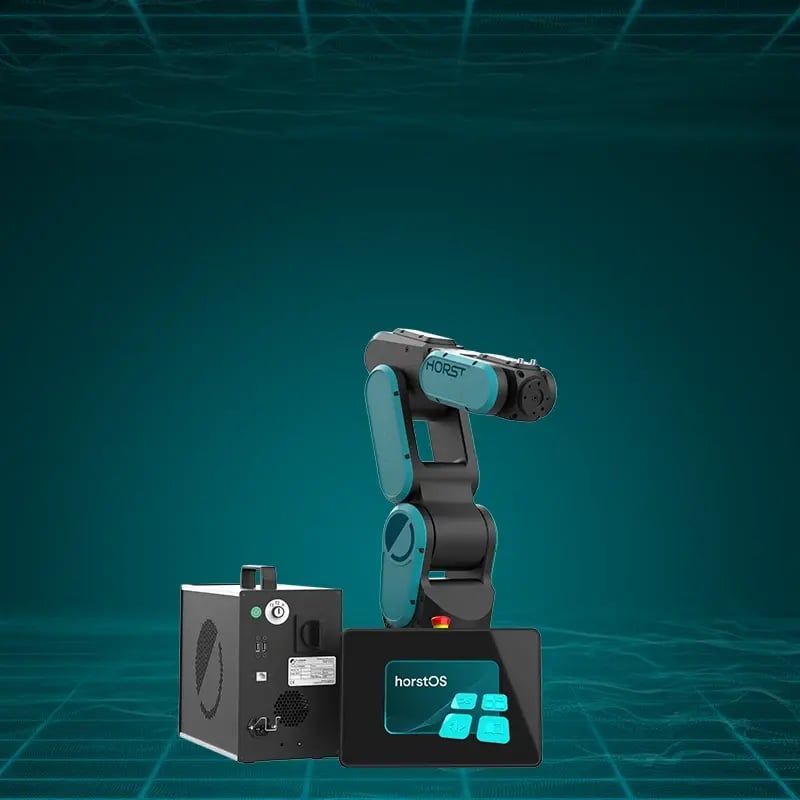

HORST600 G2 data sheet
