HORST800 G2


Highest Agility.
Minimum Space.

Free feasibility request

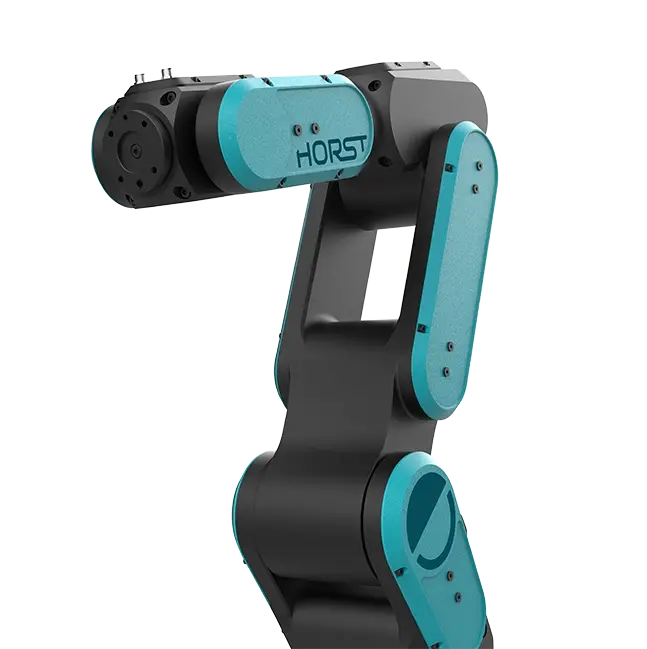

HORST800G2_header

6 kg

Maximum load capacity

840 mm
maximum reach

+/- 0.05
Repeat accuracy

IP54 / IP65
Protection class

| HORST800 G2

The all-rounder for maximum productivity.

The HORST800 G2 combines an 800 mm reach with a compact design and strong dynamics. Thanks to its maximum mobility, it is ideally suited for machine tending, small parts handling, and quality processes—wherever it is needed. Its slim arm reaches deep into machines and reliably grips boxes, even at high precision and speed. Its versatility and the intuitive, AI-supported control make it the first choice for demanding robotic cells—flexibly deployable and ready for immediate use.
//MADE IN GERMANY
//MODULAR ROBOT FAMILY
//PHYSICAL AI READY
//NO-CODE PROGRAMMING
//PLUG AND PRODUCE
//DATA SOUVEREIGNTY
| TOTAL PACKAGE

More than just a robot

With integrated control and the horstOS automation software, you can replace traditional PLC structures and external control technology. This allows you to implement complete automation - intuitively and graphically, without any expert knowledge and with a digital twin of your automation solution.
01

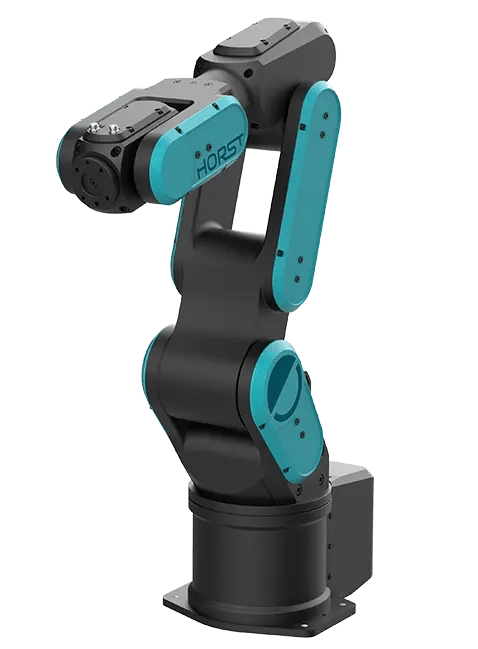

HORST800G2S_bom

HORST800 G2

Number of axles
6
Nominal load (VDI 2861-2)
5 kg
Repeat accuracy
+/- 0.05 mm
Protection class
IP54 / IP65
Clean room class (ISO 14644-1)
ISO 6
weight
40 kg
02
control_bom

Control unit

Dimensions
313 × 174 × 446 mm
weight
approx. 10 kg
Power supply
230 V AC, 50-60 Hz
Inputs and outputs
20 digital inputs,
18 digital outputs
Safety: 6 inputs,
8 outputs (PL d)
Communication
TCP/IP 100 Mbit/s, XML-RPC,
Modbus, Profinet, EtherCAT
03
panel_bom

Control unit

Dimensions
330 x 255 x 95 mm
Weight
approx. 1.9 kg
Display
13.3" touchscreen
(2560x1600 - 2.5 K)
Operation
Safety-relevant emergency stop
2x 3-point enabling switch
2x adjustable handles
Interfaces
2x USB 3.0 ports
04
horstOS_bom

Software horstOS

Software application
Automation software for
robots, processes & peripherals
Operation
Visual programming
without in-depth expert knowledge
Library
More than 200 preconfigured
components & projects
Integration
No external PLC required,
Parallel processes can be implemented
Support & assistance
Integrated AI co-pilot
incl. voice function
| PORTFOLIO

All products at a glance.
  • All products
  • Robots
  • Solutions
Machine Tending-2
KI PLATFORM

Our software

Learn more
Machine Tending II
NEW

HORST800 G2

Learn more
Pick & Place-2

HORST1000 G2

Learn more
Part Separation-1

HORST1500 G2

Learn more
Machine Tending-2
ROBOTIC SOLUTION

Machine Tending I

Learn more
Machine Tending II
ROBOTIC SOLUTION

Machine Tending II

Learn more
Pick & Place-2
ROBOTIC SOLUTION

Pick & Place

Learn more
Part Separation-1
ROBOTIC SOLUTION

Part separation

Learn more
Solutions_Overview
ROBOTIC SOLUTIONS

Our solutions

Learn more
Robots_Overview
INDUSTRIAL ROBOTS

Our robots

Learn more
horstOS_Overview
AI & SOFTWARE

Our AI platform

Learn more
Ecosystem_Overview
ECOSYSTEM

Our accessories

Learn more
HORST600G2S_Overview2-1
INDUSTRIAL ROBOT

HORST600 G2

Learn more
HORST800G2S_Overview2
INDUSTRIAL ROBOT

HORST800 G2

Learn more
HORST1000G2_Overview2
INDUSTRIAL ROBOT

HORST1000 G2

Learn more
HORST1500G2_Overview2
INDUSTRIAL ROBOT

HORST1500 G2

Learn more
| CONFIGURATOR

Configure your robot now.

Assemble your robot entirely according to your requirements. Select components, accessories, software packages and interfaces and immediately receive a transparent overview of your individual configuration.
Configure
| DOWNLOADS

All the details. Ready for download.
fruitcorerobotics_product_catalog_thumb-1
Product catalog
Discover our modular automation world - seamlessly integrated hardware, intelligent software and turnkey solutions.
Download

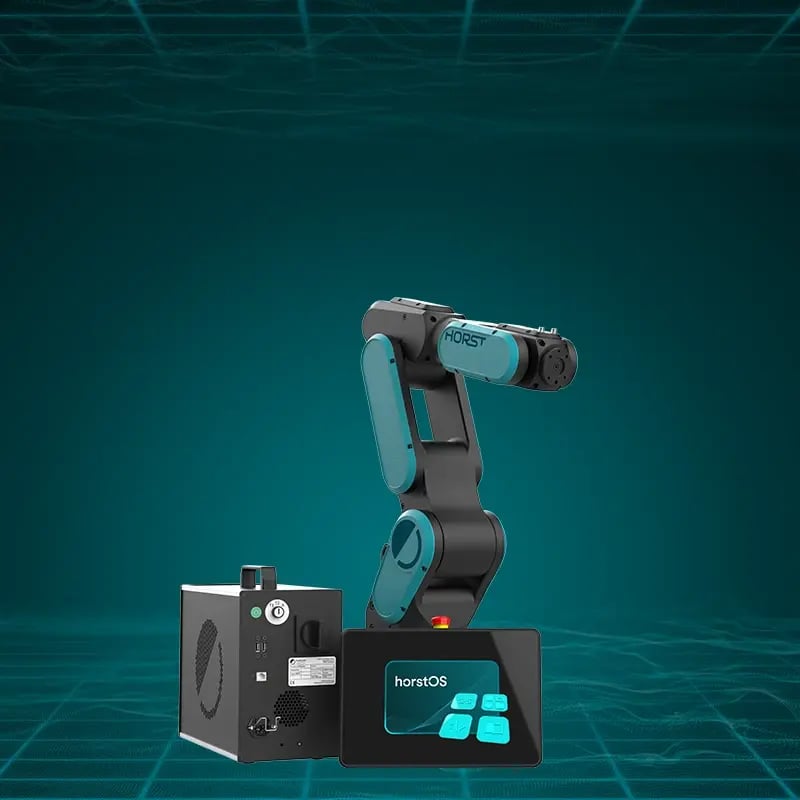

HORST800G2_techdata
HORST800 G2 data sheet
This data sheet contains all the technical data for the HORST800 G2 - essential for application planning, integration and system design.
Download
3D_data_HORST
3D models & documentation
All 3D data, installation instructions and our extensive knowledge base can be found in horstCOSMOS - register for free and access them directly.
Download
